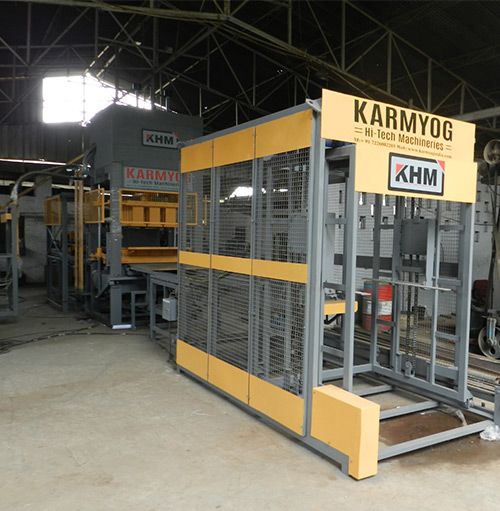

FULLY AUTOMATIC BRICK, BLOCK & PAVER MAKING MACHINE - KHM72HV (HYDRAULIC TECHNOLOGY & VIBRO COMPACTION TECHNOLOGY)

KHM72HV - Fully Automatic Brick,Paver & Block Making Machine is manufacture with Hydraulic & Vibro Compaction Technology having robust frame structure with improved Design made up of heavy steel with main cylinder specially designed by Karmyog Hi-Tech Machineries

khm72hv-in

Technical Specifications of KHM72HV:

Model No. KHM72HV
Vibration Frequency 60-90 Hz.
Cycle Time 20-25 Sec.
Installed Capacity 41.5 HP/31 kw (3 Phase)
Pallet Size 455mm X 606mm X 18mm
Land Required Minimum 2000 sq. meter/20,000- 22,000 sq. fts.
Shed 20 X 70fts. Height – 18fts.
Labour Man Power Required 8 unskilled and 1 skilled (approx.)
Production Capacity 1260 Pavers/Hour(Zigzag) | 360 Blocks/Hours (400x200x200mm) | 1440 Bricks/Hours
  • High Level of Expertise.
  • Continual research and development to incorporate new technologies.
  • State of the art infrastructure empowered with a cutting-edge technology, in house manufacturing unit and ultra-modern machineries.
  • Continual improvement in the products and services.
  • Highly skilled and dedicated workforce.
  • Least maintenance required for our products.
  • Prompt after sales support.
  • Delivery of machinery in the shortest possible lead-time.
  • Capacious warehouse having capability to store bulk number of products as per the specific requirements of the customers.
Fly ash brick /Concrete Blocks/Interlocking Paver making plant have been designed to manufacture fly ash bricks, Concrete Blocks and all types of paving blocks with Eco-friendly technology. It is a simple & cost-effective technology available in the country. The heart of the plant is an indigenously designed, a relatively low cost & high productivity machine. Other component machines of the plant Pan Mixer, Conveyor, Pallet trucks, Wheel Borrows & wooden Pallets are economically & efficiently designed to give a maximum output.
  • Production Capacity: 1260 Pavers/Hour(Zigzag) | 360 Blocks/Hours (400x200x200mm) | 1440 Bricks/Hours
  • Paver Zigzag Size: 60mm X 80mm X 100mm (or as per your requirement)
  • Paver I Shape Size: 60mm X 80mm X 100mm (or as per your requirement)
  • Concrete Block Shape Size: 400mm x 200mm x 200mm (or as per your requirement)
  • Flyash Brick Size: 230mm X 110mm X 75mm (or as per your requirement)
  • Raw Materials:
    Fly Ash Bricks: Fly Ash, Sand /Stone Dust, Hydrated Lime, Gypsum or Cement
    Interlocking Pavers: Sand /Stone Dust, Stone Chips 6 & 10mm and Cement along with Color pigment.
    Concrete Blocks: Sand /Stone Dust, Stone Chips 6 & 10mm and Cement.
