AUTOMATIC CONCRETE BLOCK MAKING MACHINE
(VIBRO COMPACTION TECHNOLOGY)

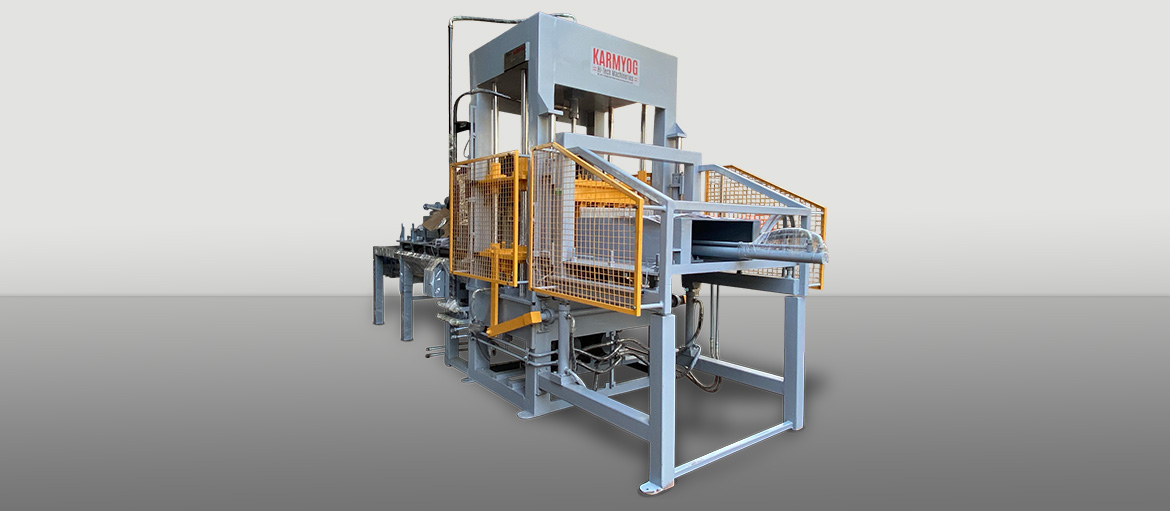

Automatic concrete Block Making Machine is manufacture with Hydraulic Technology having robust frame structure with improved Design made up of heavy steel with main cylinder specially designed by Karmyog Hi-Tech Machineries

all-fly-ash-making-machine

Technical Specifications of all models of Automatic Concrete Block Making Machine:

Model No. KHM72V KHM120V KHM144V KHM180V KHM252V
Vibration Frequency 60-90 Hz. 60-90 Hz. 60-90 Hz. 60-90 Hz. 60-90 Hz.
Cycle Time / Sec. 20-25 20-25 25-30 25-30 25-30
Installed Capacity 41.5HP/31KW
(3 Phase)
59.5HP/45KW
(3 Phase)
59.5HP/45KW
(3 Phase)
69.5HP/52KW
(3 Phase)
67HP/65KW
(3 Phase)
Land Required Min. 2000 sq.mtr.
20,000–22,000 sq. fts.
Min. 2000 sq.mtr.
20,000–22,000 sq. fts.
Min. 2000 sq.mtr.
20,000–22,000 sq. fts.
Min. 3000 sq.mtr.
32,000–35,000 sq. fts.
Min. 4000 sq.mtr.
42,000–45,000 sq.fts.
Shed Required 20 X 70fts.
Height – 18fts.
20 X 70fts.
Height – 18fts.
20 X 70fts.
Height – 18fts.
20 X 70fts.
Height – 18fts.
30 X 80fts.
Height – 18fts.
Labour Man Power Required (approx.) 8 unskilled and 1 skilled (approx.) 8 unskilled and 1 skilled (approx.) 8 unskilled and 1 skilled (approx.) 8 unskilled and 1 skilled (approx.) 8 unskilled and 1 skilled (approx.)
Blocks/Strock 2 Blocks/Strock 3 Blocks/Strock 3 Blocks/Strock 4 Blocks/Strock 6 Blocks/Strock
Production Capacity 360 Blocks/Hour (approx.) 540 Blocks/Hour (approx.) 540 Blocks/Hour (approx.) 720 Blocks/Hour (approx.) 1080 Blocks/Hour (approx.)

Note:The product size, production cycle time, production capacity and product quality may vary according to the number of hours machine is operated and raw materials proposition is taken.
Size variation of ±3mm length and ±2mm width and Heigth is allow as per IS Standard.
